Dimensions

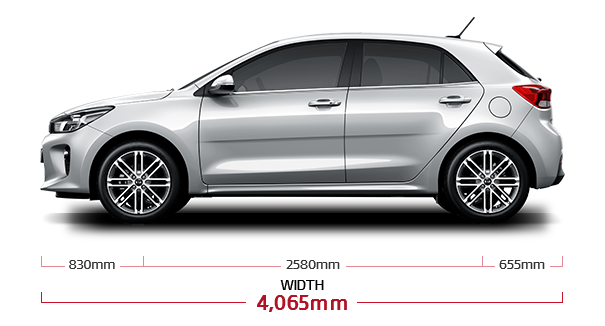

DIMENSIONS(mm)
table fix area
CAR
Overall length
Overall width
Overall height
Wheelbase
Wheeltread (front)
Wheeltread (rear)
Overhang (front)
Overhang (rear)
Leg room (front)
Leg room (rear)
Head room (front)
Head room (rear)
Shoulder room (front)
Shoulder room (rear)
Minimum ground clearance

Rio 5-door

4,065

1,725

1,460

2,580

1,512

1,528

830

655

1,070

850

1,020

964

1,375

1,355

150

ENGINE
table fix area
Displacement (cc)
Max. Power (ps/rpm)
Max. Torque (kg•m/rpm)
Mated transmission

K1.4 MPI K1.2 MPI
1,368 1,248
100 / 6,000 84 / 6,000
13.6 / 4,000 12.4 / 4,000
6M/T, 4A/T 5M/T

Wheels

Next

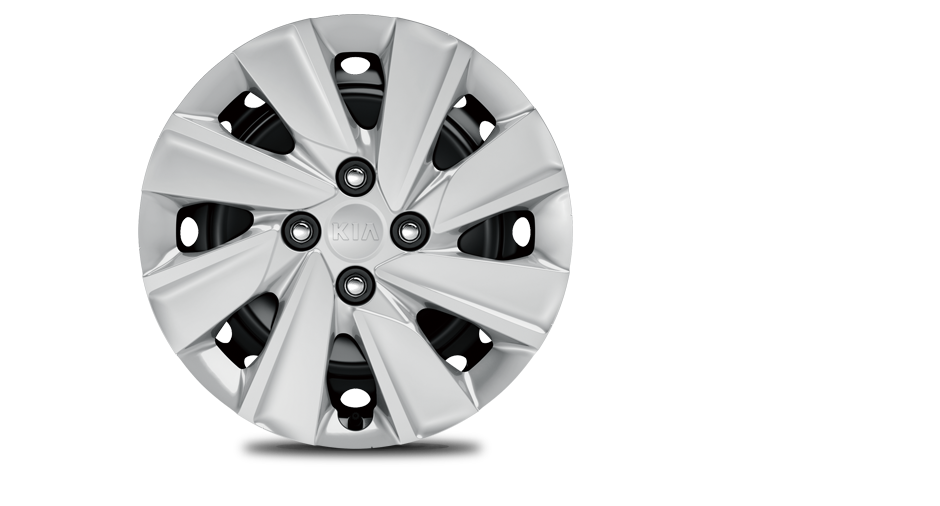

  • 15'' Steel wheel

     Steel wheel

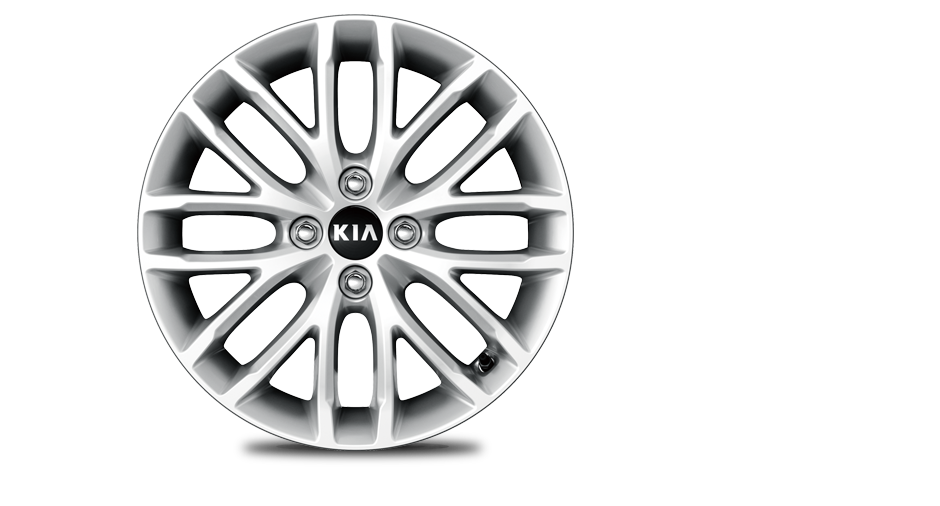

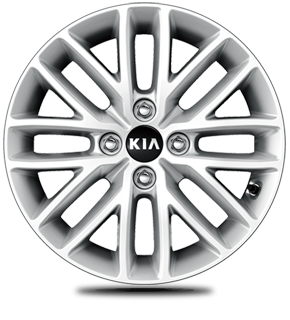

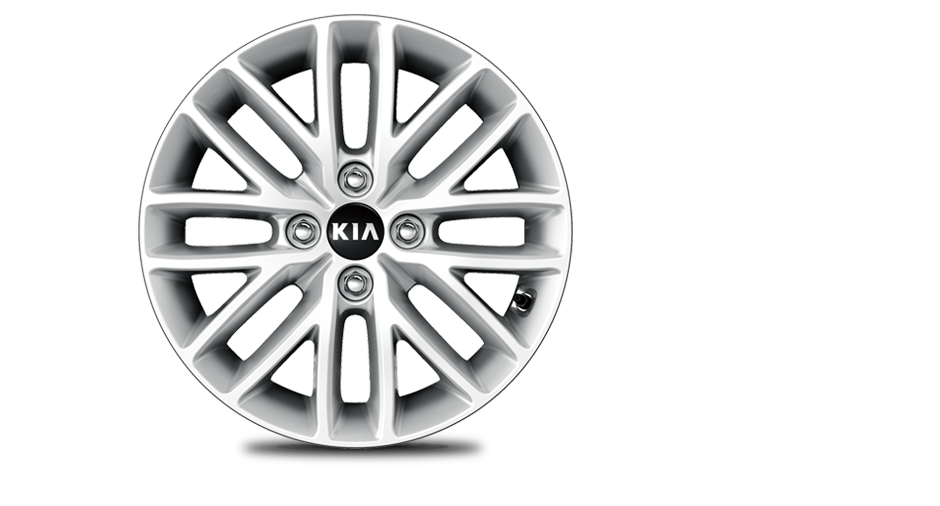

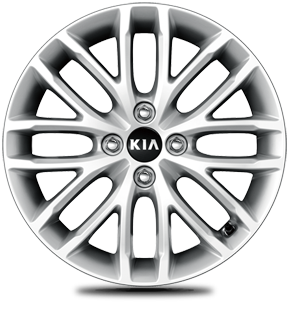

  • 15'' Alloy Wheel

    Alloy Wheel
  • 16'' Alloy Wheel

    Alloy Wheel

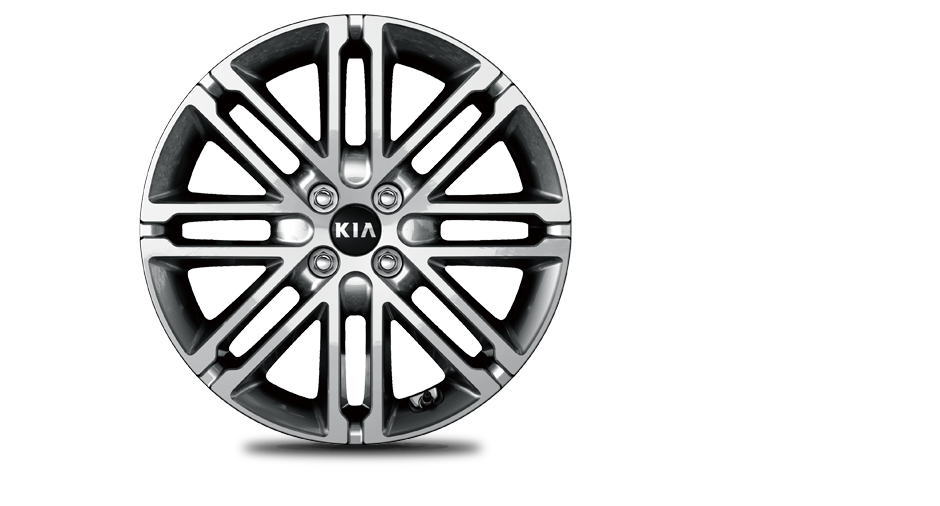

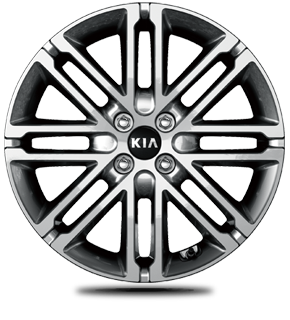

  • 17'' Alloy wheel

    Alloy wheel
Prev
  • Specifications of the vehicle may vary by region.
  • All information and illustrations are based on data available at the time of publication and subject to change without notice.
    Contact your local Kia dealer for current information.
