Specification
Sales Kit

Specification

Dimensions

Next
  • kia_ja_pe_picanto_dimensions_01_w kia_ja_pe_picanto_dimensions_01_t kia_ja_pe_picanto_dimensions_01_m
  • kia_ja_pe_picanto_dimensions_02_w kia_ja_pe_picanto_dimensions_02_t kia_ja_pe_picanto_dimensions_02_m
  • kia_ja_pe_picanto_dimensions_03_w kia_ja_pe_picanto_dimensions_03_t kia_ja_pe_picanto_dimensions_03_m-
Prev
Dimensions (mm)
table fix area
Car
Overall length
Overall width
Overall height
Wheelbase
Wheeltread (front)
Wheeltread (rear)
Overhang (front)
Overhang (rear)
Leg room (front)
Leg room (rear)
Head room (front)
Head room (rear)
Shoulder room (front)
Shoulder room (rear)
Min. ground clearance
Luggage (VDA)

Picanto

3,595

1,595

1,495

2,400
1,393 (15”Tire)
1,403 (15”Tire)

675

520

1,085

820

1,005

960

1,300

1,280

151

255

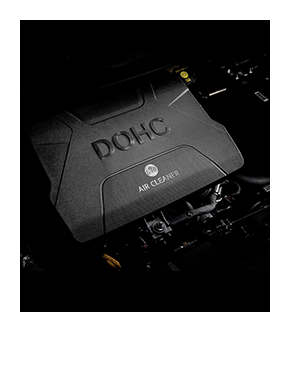

Engine

Next

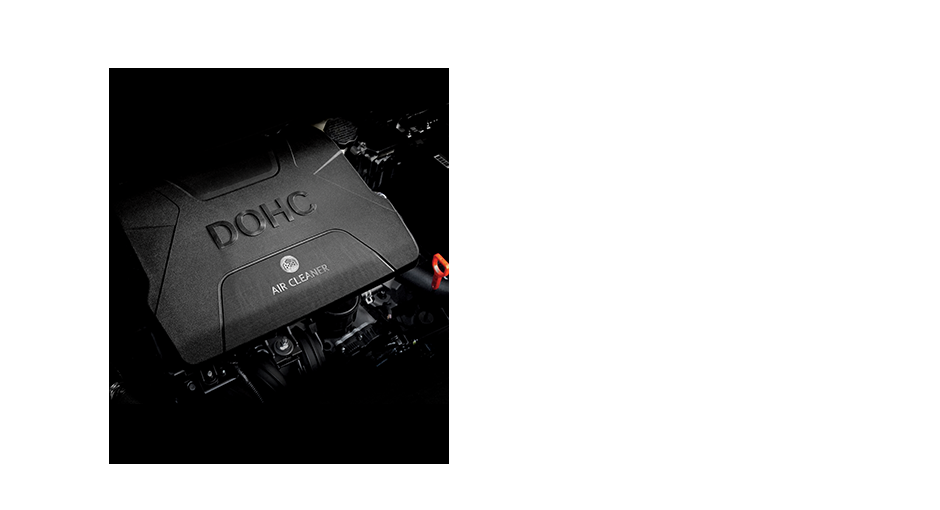

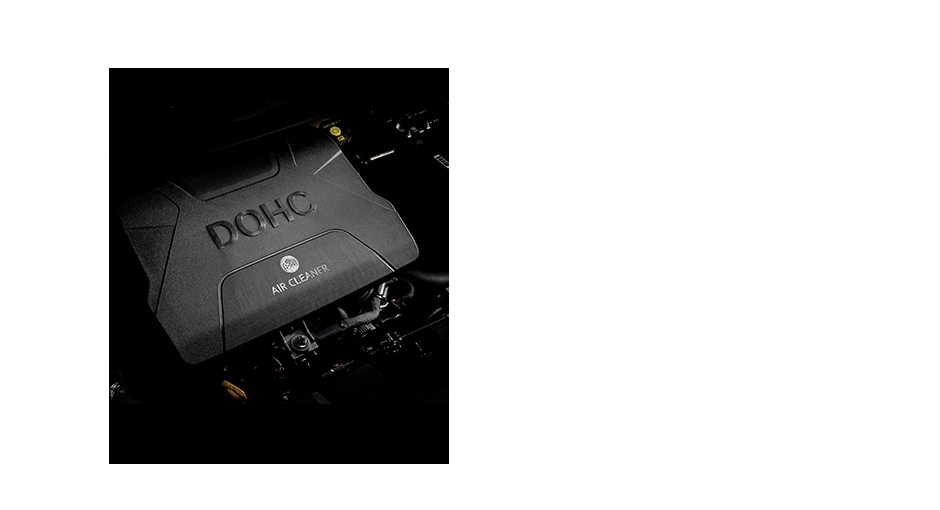

  • Kappa 1.0 MPI

    • Max. Power (ps/rpm) 67ps
    • Max. Torque (kg•m/rpm) 9.7kg.m
    Kappa 1.0 MPI

  • Kappa 1.2 MPI

    • Max. Power (ps/rpm) 83ps
    • Max. Torque (kg•m/rpm) 11.7kg.m
    Kappa 1.2 MPI
Prev
Engine
table fix area
Max. Power (ps/rpm)
Max. Torque (kg•m/rpm)
Kappa 1.0 MPI Engine Kappa 1.2 MPI Engine
67ps 83ps
9.7kg.m 11.7kg.m

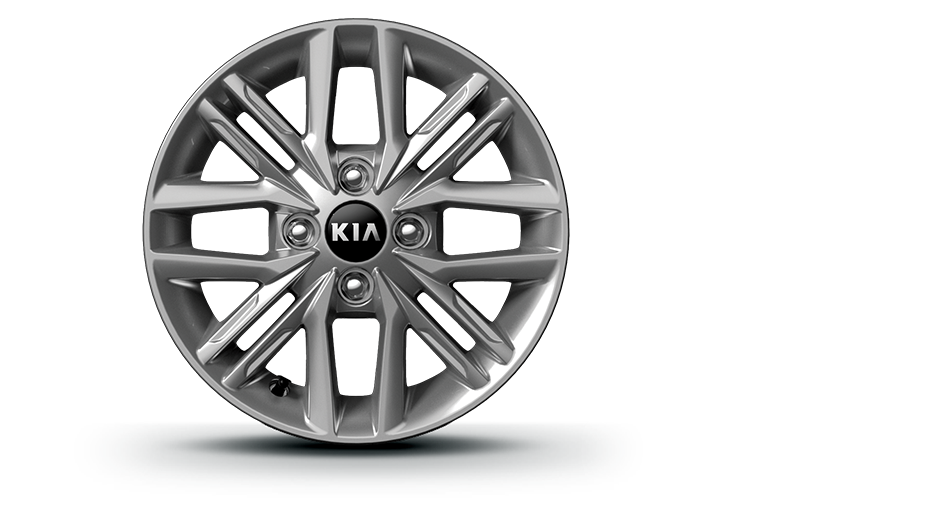

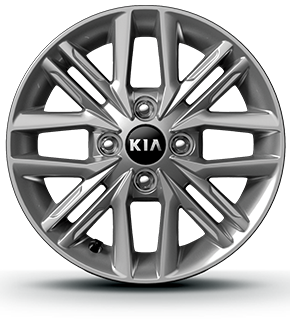

Wheels

Next

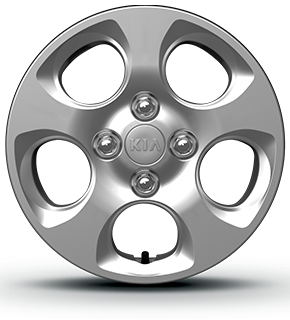

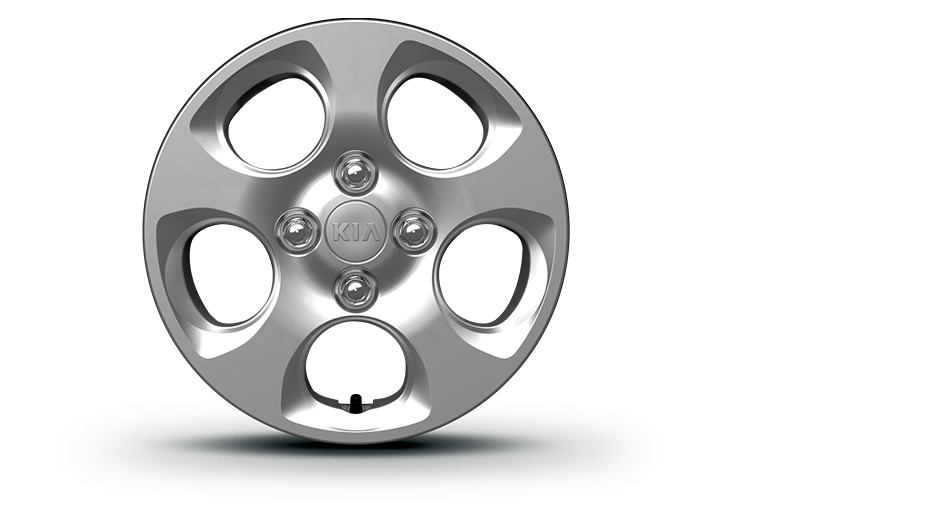

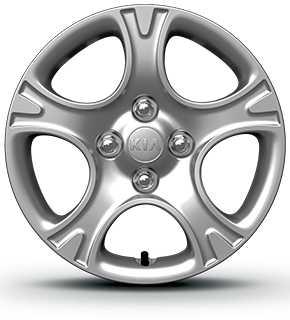

  • 13" Wheel Cover

    13" Wheel Cover

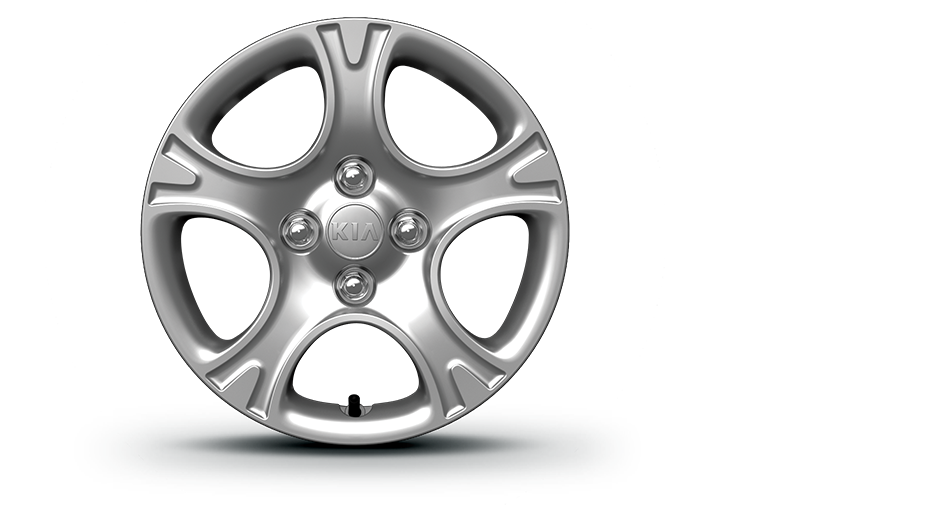

  • 14" Wheel Cover

    14" Wheel Cover

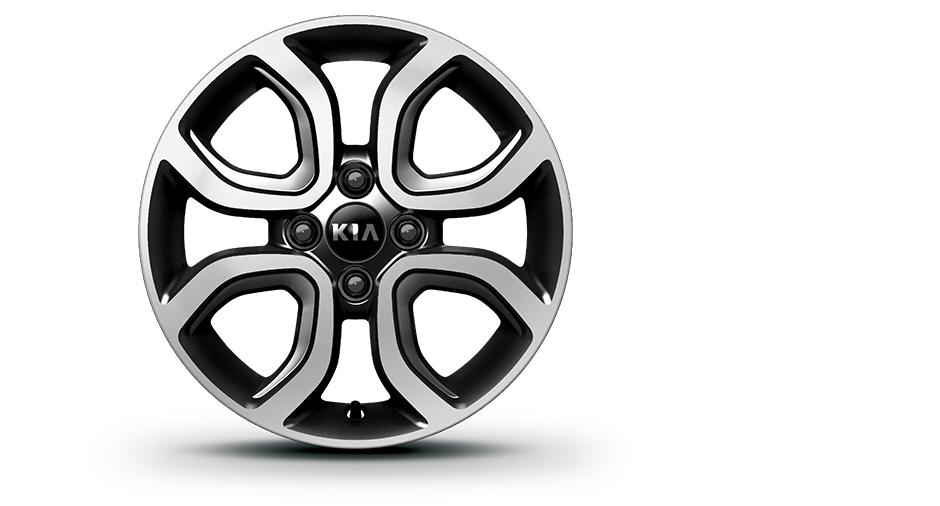

  • 14" Alloy Whee

    14" Alloy Whee

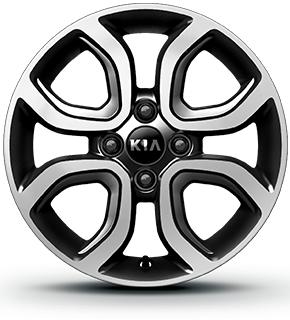

  • 15" Alloy Wheel

    15" Alloy Wheel
Prev
  • Specifications of the vehicle may vary by region.
  • All information and illustrations are based on data available at the time of publication and subject to change without notice.
    Contact your local Kia dealer for current information.
