Dimensions

Dimensions
table fix area
Overall length
Overall width
Overall height (excluding roof rack)
Wheelbase
Wheel tread (Front / Rear)
Overhang (Front / Rear)
Legroom (Front / Rear)
Headroom (Front / Rear)
Shoulder room (Front / Rear)
Ground clearance
Fuel tank (ℓ)

4,335
1,805
1,545 (1,535)
2,700
1,555 /1,569
870 / 785
1,059 / 950
1,018 / 993
1,423 / 1,402
160
45
Engine
table fix area
Engine name
Max. Power (ps/rpm)
Max. Torque (kg•m/rpm)

New Kappa 1.6 GDi engine
105 / 5,700
15 / 4,000

Wheels

Next

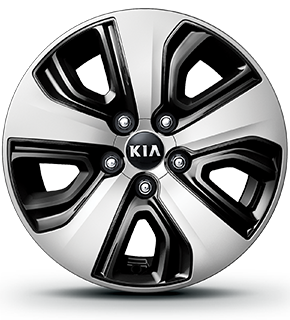

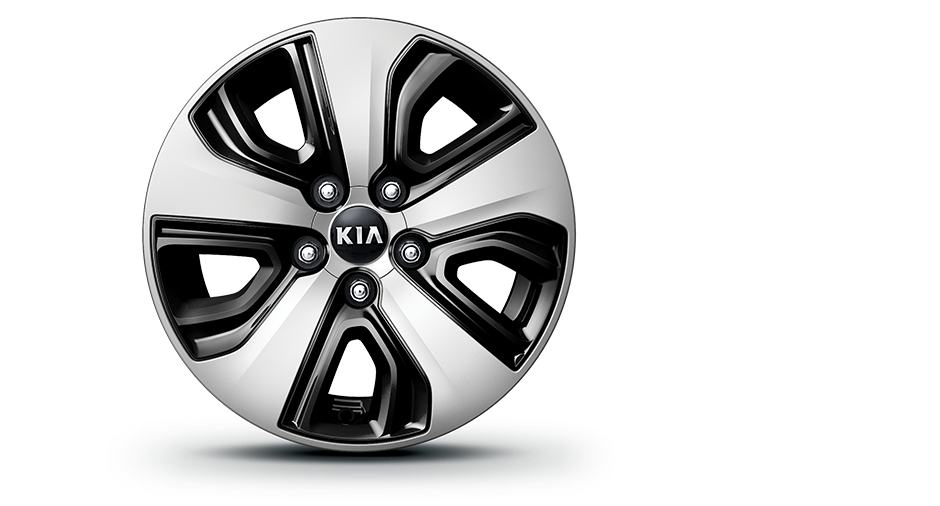

  • 16” Wheels

    16” Wheels

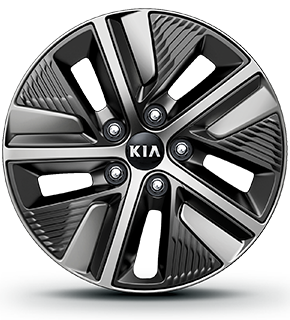

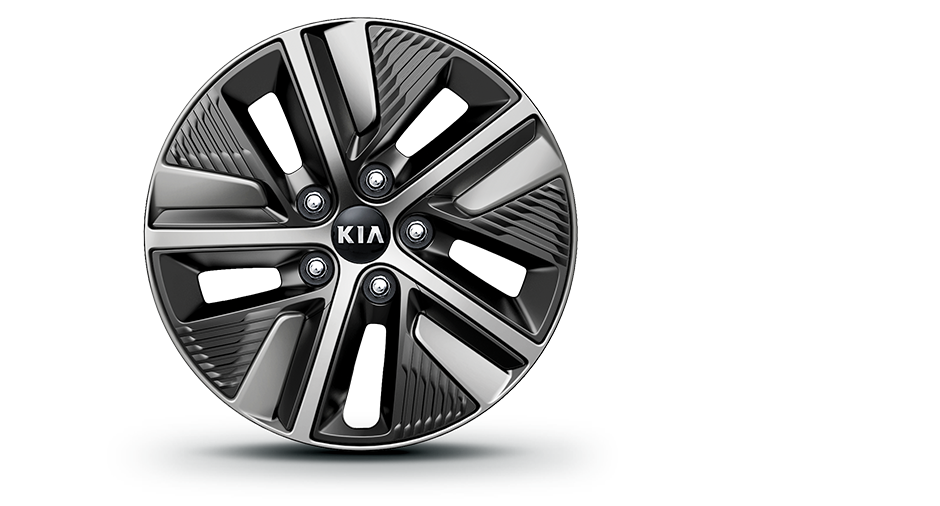

  • 16” wheels

    16” wheels

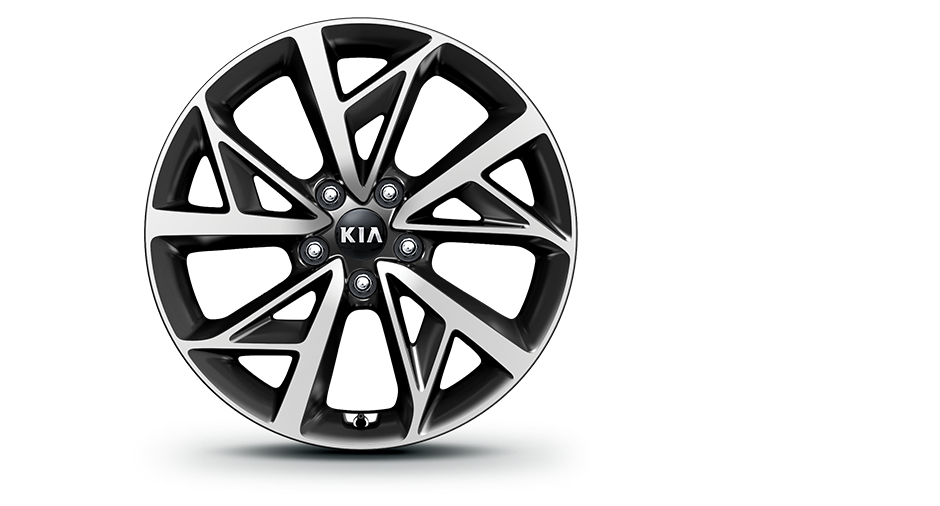

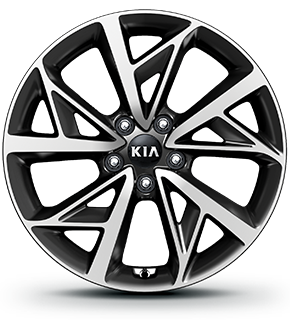

  • 18” wheels (Machine Finished)

    18” wheels (Machine Finished)
Prev
  • Specifications of the vehicle may vary by region.
  • All information and illustrations are based on data available at the time of publication and subject to change without notice.
    Contact your local Kia dealer for current information.
